يتم التحكم في المنتج عن طريق الكمبيوتر المصغّر ويتم تشغيله هيدروليكيًا. وهو ينطبق على عرض الأحرف الصينية وتشغيل المحادثة بين الإنسان والآلة ، ويمكن تشغيله يدويًا أو شبه تلقائي. تبديل القدم بنقطة واحدة له وظيفتان ، بدء التشغيل ووقف الطوارئ.


  • الفئة: آلة تشكيل نهاية الأنبوب

الوصف

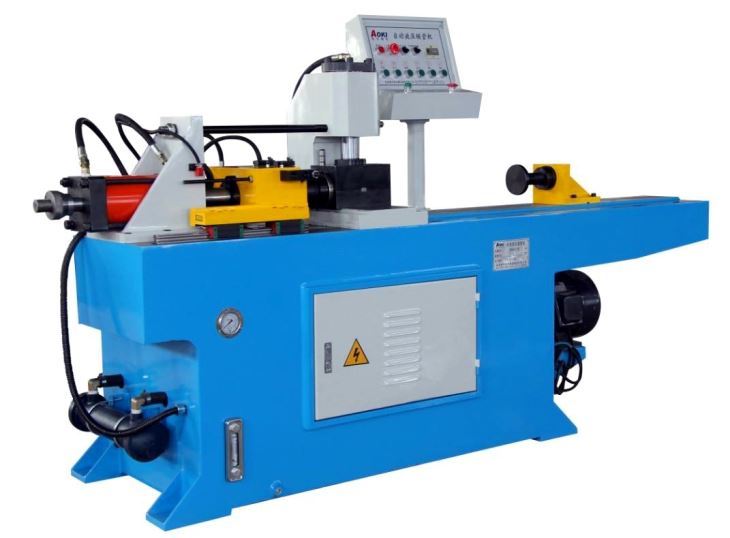

Tube End Forming Shrink Machine

Tube End Forming Shrink Machine

Feature:

1. The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

2. The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

Specification/modelSG40NC
Input voltage380V±10%  50HZ Three-phase power (customizable)
Control circuit24V

Maximum forming pipe diameter x thickness

 (Iron pipe)

Φ40*2mm
Maximum working process110mm
Oil pump17L
Motor power4kw
Hydraulic pressure12Mpa
Measurement size of machine 2000*550*1300mm
Weight of machine1100KG
